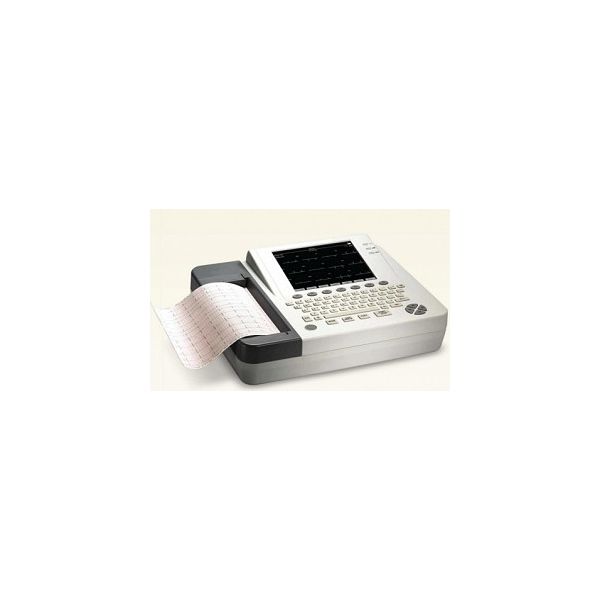

DRE True 12T Twelve-Channel EKG Machine with Touch Screen

Home > > DRE True 12T Twelve-Channel EKG Machine with Touch Screen

DRE True 12T Twelve-Channel EKG Machine with Touch Screen


Model: DRE12T

A cost-performance EKG machine with a large touch screen display. Reports can be previewed before printing.


  • Average template ekg machine waveform with accurate interpretation tested with CSE DATABASE, which supplies measurement, diagnosis, and Minnesota code.

  • Doctor can edit the ekg printing style, printing speed, sensitivity, and used filter to get better waveforms instead of repeating patient examination.

  • Freeze and review waveform timely to grasp every arrythmia.

  • Internal storage including waveforms, measurement and diagnosis which could also be enlarged by flash disk or PC hard disk.

  • Compact, lightweight design with carrying handle.

  • Digital filters for baseline, AC and EMG interference resistance.

  • Standby mode for energy saving.

  • EKG Machine has Built-in Ethernet and RS-232 interfaces for PC connection.

  • USB port for data transmission and external jet-printer connection.

  • Built-in rechargeable Li-ion battery: voltage=14.4V - 5 hours, 400 Reports, 320 x 240 dots monochrome LCD.

Technical Specifications

  • Lead Standard: 12 leads

  • Acquisition Mode: 12-channel simultaneous

  • A/D Converter: 24 bits

  • Input Voltage Range: ±5mVp-p

  • Time Constant: >3.2s

  • Frequency Response: 0.05Hz-150Hz

  • Calibration Voltage: 1mV±2%

  • Sensitivity: 2.5, 5, 10, 20, 10/5, AGC (mm/mV)

  • Input Impedance: >50M Ω (10Hz)

  • Input Circuit Current: <10nA

  • Noise Level: <12.5 μ Vp-p

  • Patient Leakage Current <10 μ (220V-240V)

  • Patient Auxiliary Current <0.1 μ A (DC)

  • Recording Modes Auto/manual/rhythm:

  • Rhythm Lead: Single lead or three leads selectable

  • Power Supply: AC:100-240V, 50/60Hz

  • Battery: Built-in rechargeable Li-ion battery: voltage=14.4V, for about 400 copies ECG printing

  • Recording Paper: Roll and z-fold 216mm, 210mm width

  • Dimensions: 420mm x 330mm x 120mm
