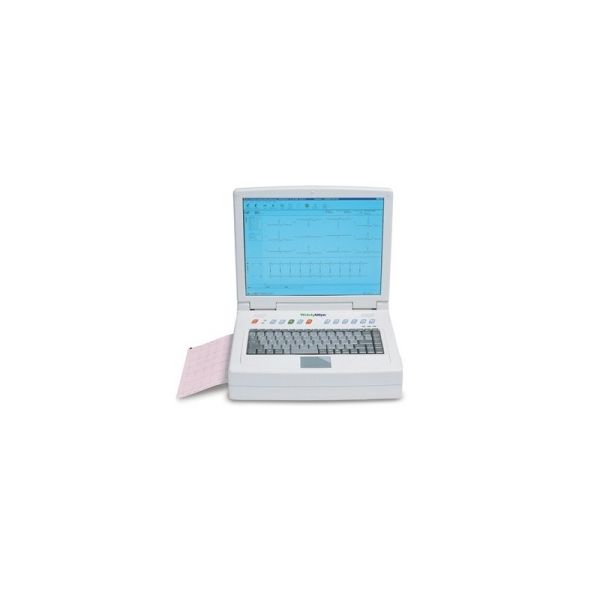

Welch Allyn CP 300 CardioLaptop ECG
IN STOCK

Home > Welch Allyn > Welch Allyn CP 300 CardioLaptop ECG

Welch Allyn CP 300 CardioLaptop ECG


MSRP: $8,300.00

OUR PRICE: $8,300.00

You Save:



Manufacturer: Welch Allyn
Model: CP 300


Offering the flexibility and storage you need, with the added convenience of a laptop format.  Also features Stress Option.

Features and Benefits

  • Laptop-style ECG and stress system with 15" full-color display for easy patient data entry and waveform monitoring
  • Noninterpretive, 12-lead resting ECGs come standard with measurements
  • Dedicated function keys--offer quick access for common functions
  • Optional ECG Interpretation software for both adult and pediatric patients
  • Graphical electrode test--with checkpoints/aid on electrode placement and lead quality
  • 40GB storage--plenty of room to store large volumes of test records
  • Flexible report formats--Full-size reports (8.5"x11\\') generated from a high-resolution thermal printer and multiple print formats, enable you to choose from up to 6 different styles
Technical Specifications
  • Dimensions: 100 x 285 x 350 mm (l x w x h)
  • Weight: 6,8 kg / 15 lbs
  • Monitor: 15” TFT display, high resolution 1024 x 768 pixels
  • Interfaces: RS-232 interfaces, 1 LPT bi-directional Centronic interface, Ethernet LAN RJ45
  • Operator Interface:

    - Alphanumeric PC keyboard with glide point

    - Direct function keys

    - PC mouse and external PC keyboard (optional)
  • Battery:

    - 24 V Lithium-ion rechargeable (built in charger); giving bridging power for at least 60 min
  • Power consumption: 75 VA
  • Power supply requirements: 100 â€" 240 V, 50/60 Hz
  • Processor:

    - Industrial single board computer

    - Memory media: Integrated hard disk

    - Network card: Integrated
  • Printing process:

    - Integrated high-resolution thermal print head, 8 dots/mm (amplitude axis), 40 dots/mm (time axis),@ 25 mm/s

    - Paper speeds: 10 / 25 / 50 mm/sec (manual)

    - Chart paper: Thermo reactive, Z-folded, letter size, ready-to-file

    - Frequency response of digital recorder: 0 to 150 Hz (IEC/AHA)

    - Recording tracks: 6 channels, positioned at optimal width on 200 mm, automatc baseline adjustment

    - Sensitivities: 5 / 10 / 20 mm/mV

    External printer (optional): Windowsâ"¢ standard
  • ECG amplifier:

    - Simultaneous, synchronous recording of all active electrode signals

    - Dynamic range Ã,± 10 mV AC

    - Frequency response: 0.05 to 150 Hz (â€" 3dB)

    - Digital resolution: 5 Ã,µV

    - Maximum electrode potential: Ã,± 300 mV DC

    - Time constant: 3.2 sec

    - Common mode rejection: > 100 dB / 50 or 60 Hz

    - Input Impedance: > 100 M Ohm
